Spesifikasi FLIR T840
Imaging & Optical

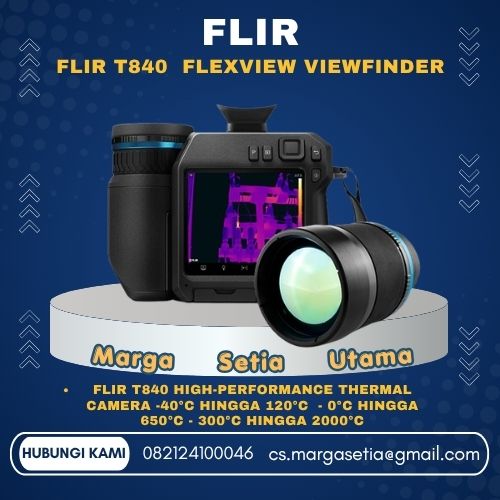

✔ Model : FLIR T840 High-Performance Thermal Camera
✔ Resolusi Thermal : 464 × 348 piksel (161.472 piksel)
✔ Detector : Uncooled Microbolometer, 17 µm
✔ Sensitivitas Thermal (NETD) :
<30 mK (Lensa 42°)
<40 mK (Lensa 24°)
<50 mK (Lensa 14°)
✔ Kamera Digital : 5 MP dengan LED Photo/Video Lamp
✔ Digital Zoom : 1× hingga 6×
✔ Frekuensi Gambar : 30 Hz
✔ Rentang Spektral : 7.5 – 14 µm
✔ Viewfinder : Integrated Eyepiece Viewfinder
✔ UltraMax® : Meningkatkan jumlah piksel hingga 4×
✔ Identifikasi Lensa Otomatis
Pilihan Lensa
✔ 42° × 32°
✔ 24° × 18°
✔ 14°
✔ 6° Telephoto
✔ 80° Wide Angle
✔ FlexView™ Dual FOV (24°/14° & 42°/24°)
Fokus
✔ Continuous Auto Focus (Laser Distance Meter)
✔ One-Shot LDM Focus
✔ One-Shot Contrast Focus
✔ Manual Focus
Mode Gambar
✔ Thermal Image
✔ Visual Image
✔ FLIR MSX®
✔ Picture-in-Picture (PIP)
Palet Warna
✔ Iron
✔ Gray
✔ Rainbow
✔ Arctic
✔ Lava
✔ Rainbow HC
Pengukuran & Analisis
✔ Rentang Suhu Objek :
-40°C hingga 120°C
0°C hingga 650°C
300°C hingga 2000°C
✔ Akurasi : ±2°C atau ±2% dari pembacaan
✔ Spot Meter : 3 Titik
✔ Measurement Presets :
Center Spot
Hot Spot
Cold Spot
User Preset 1
User Preset 2
Layar & Antarmuka
✔ Layar Sentuh 4 inci
✔ Resolusi 640 × 480 Color LCD
✔ Auto Rotation Display
✔ Input Teks melalui Touchscreen Keyboard
✔ Perekaman Suara hingga 60 detik (Microphone & Speaker Internal / Bluetooth)
Penyimpanan & Konektivitas
✔ Media Penyimpanan : Removable SD Card
✔ Format File : Radiometric JPEG
✔ Penyimpanan :
Thermal
Visual
MSX®
Picture-in-Picture
✔ Radiometric Video Recording (.CSQ)
✔ Radiometric Video Streaming via UVC
✔ Non-Radiometric Streaming H.264 / MPEG-4
✔ USB 2.0
✔ USB Type-C DisplayPort
✔ Wi-Fi
✔ Bluetooth
✔ METERLiNK®
✔ Time Lapse : 10 detik hingga 24 jam
Daya
✔ Baterai Lithium-ion Rechargeable
✔ Waktu Operasi : ±4 Jam
✔ Pengisian di Kamera atau Charger Eksternal
Ketahanan
✔ Suhu Operasional : -15°C hingga 50°C
✔ Suhu Penyimpanan : -40°C hingga 70°C
✔ Sertifikasi Keselamatan :
EN
UL
CSA
PSE 60950-1
Keunggulan FLIR T840
✔ Resolusi thermal tinggi 464 × 348 piksel (161.472 piksel)
✔ Integrated Viewfinder untuk inspeksi di bawah cahaya terang
✔ Lensa berputar 180° memudahkan inspeksi area sulit dijangkau
✔ Kompatibel dengan FLIR FlexView™ Dual FOV Lens
✔ Pilihan 6° Telephoto Lens untuk pengukuran objek kecil dari jarak jauh
✔ Teknologi FLIR MSX® menghasilkan detail gambar lebih tajam
✔ UltraMax® meningkatkan kualitas dan detail citra thermal
✔ Autofocus berbasis Laser Distance Meter (LDM) yang cepat dan akurat
✔ Streaming video radiometrik dan perekaman data secara real-time
✔ Mendukung dokumentasi lengkap dengan foto, video, suara, dan anotasi teks
Aplikasi
✔ Inspeksi Gardu Listrik & Panel Tegangan Tinggi
✔ Pembangkit Listrik
✔ Industri Minyak & Gas
✔ Utilitas Kelistrikan
✔ Manufaktur & Otomasi Industri
✔ Predictive & Preventive Maintenance
✔ Inspeksi Mekanikal
✔ Inspeksi HVAC
✔ Monitoring Proses Industri
✔ Inspeksi Infrastruktur
