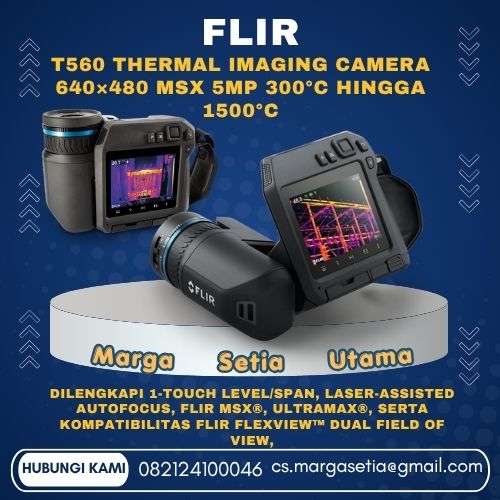

Spesifikasi FLIR T560
Imaging & Optical
✔ Resolusi IR : 640 × 480 piksel (307.200 piksel)
✔ Detector : Uncooled Microbolometer, 12 µm
✔ Sensitivitas Thermal (NETD) :
<30 mK @ 30°C (42° Lens)
<40 mK @ 30°C (24° Lens)
<50 mK @ 30°C (14° Lens)
✔ Kamera Digital : 5 MP dengan LED Photo/Video Lamp
✔ Digital Zoom : 1–8× Continuous
✔ Image Frequency : 30 Hz
✔ Rentang Spektral : 7.5–14 µm
✔ UltraMax® : Meningkatkan jumlah piksel hingga 4×
✔ Viewfinder : Tidak tersedia
Pilihan Field of View
✔ 42° × 32°
✔ 24° × 18°
✔ 14° × 10°
✔ 80° × 63°
✔ Kompatibel FlexView™ Dual FOV (24°/14° & 42°/24°)
Fokus & Lensa
✔ Continuous Focus dengan Laser Distance Meter (LDM)
✔ One-Shot LDM
✔ One-Shot Contrast
✔ Manual Focus
✔ Automatic Lens Identification
✔ Laser Alignment pada citra infrared
✔ Minimum Focus Distance mulai 0,10 m tergantung lensa
✔ Optional Macro Mode pada lensa 24° hingga 50 µm effective spot size
Mode Gambar
✔ Infrared
✔ Visual
✔ FLIR MSX®
✔ Picture-in-Picture (PIP)
✔ Visual & Radiometric Video Recording
Palet Warna
✔ Iron
✔ Gray
✔ Rainbow
✔ Arctic
✔ Lava
✔ Rainbow HC
Pengukuran & Analisis
✔ Akurasi : ±2°C atau ±2% dari pembacaan
✔ Rentang Suhu Objek :
-20°C hingga 120°C
0°C hingga 650°C
300°C hingga 1500°C
✔ Automatic Hot & Cold Detection
✔ Center Spot, Hot Spot & Cold Spot
✔ Difference Temperature / Delta T
✔ Reference Temperature
✔ Emissivity Correction : 0,01–1,0
✔ Color Alarm / Isotherm :
Above
Below
Interval
Condensation
Insulation
✔ Audible & Visual Measurement Alarms
✔ Measurement Presets & User Presets
Layar & User Interface
✔ Layar Sentuh 4 inci IPS LCD
✔ Resolusi 640 × 480 piksel
✔ Auto-Rotation
✔ Optically Bonded PCAP Touchscreen
✔ 21 Bahasa
✔ Perekaman Voice Annotation hingga 60 detik
✔ Built-in Microphone & Speaker
Penyimpanan & Konektivitas
✔ Media Penyimpanan : Removable SD Card
✔ Format : JPEG dengan Measurement Data
✔ USB Type-C untuk Data Transfer / Video / Power
✔ USB 2.0 High Speed
✔ DisplayPort melalui USB Type-C
✔ Wi-Fi
✔ Bluetooth
✔ FLIR METERLiNK®
✔ Koneksi Bluetooth untuk headset dan sensor eksternal
✔ Radiometric IR Video Recording (.CSQ)
✔ Radiometric Video Streaming via UVC
✔ Non-Radiometric Streaming H.264 / MPEG-4
Daya
✔ Baterai : Li-ion Rechargeable
✔ Waktu Operasi : ±4 Jam
✔ Tegangan Baterai : 3,6 V
✔ Charging : Kamera atau Two-Bay Charger
✔ Charging Temperature : 0°C hingga 45°C
✔ External Power : 90–260 V AC atau 12 V kendaraan
✔ Automatic Shutdown & Sleep Mode
Ketahanan & Sertifikasi
✔ Suhu Operasional : -15°C hingga 50°C
✔ Suhu Penyimpanan : -40°C hingga 70°C
✔ Kelembapan : 95% RH
✔ Tripod Mounting : UNC 1/4″-20
✔ Safety : EN/UL/CSA/PSE 60950-1
✔ EMC : ETSI EN 301 489-1 / EN 301 489-17 / EN 61000-6-2 / EN 61000-6-3
✔ FCC Part 15 Class B
Keunggulan FLIR T560
✔ Resolusi tinggi 640 × 480 piksel untuk citra thermal detail
✔ Platform lensa 180° rotating untuk inspeksi area sulit dijangkau
✔ Laser-Assisted Autofocus untuk fokus cepat dan akurat
✔ 1-Touch Level/Span untuk meningkatkan kontras thermal dengan cepat
✔ Teknologi FLIR MSX® & UltraMax®
✔ Mendukung FlexView™ Dual FOV Lens
✔ Layar sentuh IPS 4 inci dengan auto-rotation
✔ Inspection Route untuk inspeksi terstruktur
✔ Pengukuran suhu hingga 1500°C
✔ Mendukung perekaman thermal radiometrik, visual, video, dan voice annotation
Aplikasi
✔ Inspeksi Panel & Instalasi Listrik
✔ Pemeriksaan Motor dan Mesin
✔ Predictive & Preventive Maintenance
✔ Deteksi Hot Spot
✔ Inspeksi Peralatan Mekanikal
✔ Industri Manufaktur
✔ Pembangkit & Utilitas
✔ HVAC & Refrigerasi
✔ Troubleshooting Sistem Listrik
✔ Verifikasi Hasil Perbaikan
