Deskripsi

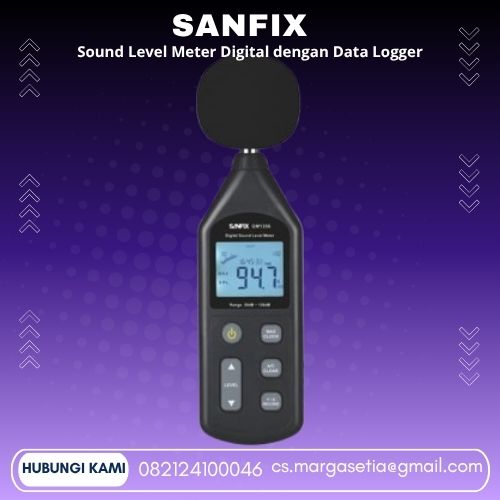

Sanfix GM1356 Digital Sound Level Meter adalah alat ukur tingkat kebisingan profesional dengan rentang 30–130 dBA dan 35–130 dBC. Dilengkapi koneksi USB ke PC untuk download data, analisis real-time, serta pencetakan grafik dan data. Memiliki fungsi data recording hingga 4.700 data, frequency weighting A/C, mode FAST/SLOW, calendar function, dan auto power off. Cocok untuk industri, pabrik, lingkungan, konstruksi, inspeksi kebisingan, dan analisis data suara.
Fitur Sanfix GM1356
✔ Rentang pengukuran 30–130 dBA / 35–130 dBC
✔ Frequency weighting A / C
✔ Koneksi USB ke PC
✔ Download dan analisis data secara real-time
✔ Fungsi cetak grafik dan data
✔ Data recording hingga 4.700 data
✔ Sampling FAST 8 kali/detik / SLOW 2 kali/detik
✔ Calendar function
✔ Auto power off setelah 10 menit tanpa pengoperasian
✔ Mikrofon 1/2 inch polarization capacitance
✔ Self calibration 3 detik
✔ Calibration sound source 94 dB @ 1 kHz
Spesifikasi Sanfix GM1356
✔ Model: GM1356
✔ Unit: 1 unit
✔ Measurement Range: 30–130 dBA; 35–130 dBC
✔ Frequency Response: 31,5 Hz–8,5 kHz
✔ Measuring Level: 30–80 dB; 50–100 dB; 60–110 dB; 80–130 dB; 30–130 dB
✔ Frequency Weighting: A / C
✔ Digital Display: 4 digit
✔ Sampling Rate: FAST 8 kali/detik; SLOW 2 kali/detik
✔ Data Record: Hingga 4.700 data
✔ USB Function: Ya, koneksi PC
✔ Microphone: 1/2 inch polarization capacitance microphone
✔ Auto Power Off: 10 menit tanpa pengoperasian
✔ Calendar: Ya
✔ PWM Output: Duty cycle = (0,01 × nilai dB / 3,3) × 100%
✔ Calibration Source: 94 dB @ 1 kHz
✔ AC Signal Output: 4 Vrms @ full bar graph
✔ Linearity Range: 50 / 100 dB
✔ Self Calibration: 3 detik
✔ Output Impedance: 600 Ω
✔ Power: 4 × baterai alkaline 1,5V (6V)
✔ Berat: ±0,5 kg
