Deskripsi

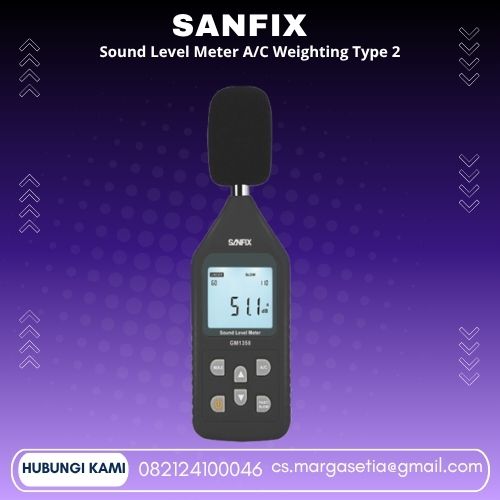

Sanfix GM 1358 Digital Sound Level Meter adalah alat ukur tingkat kebisingan profesional dengan rentang 30–130 dBA dan 35–130 dBC, akurasi hingga ±1,5 dB, serta frequency weighting A/C. Dilengkapi mode FAST/SLOW, display digital 4 digit, bar graph, serta output AC dan DC untuk koneksi ke perangkat analisis seperti frequency analyzer, FFT analyzer, dan graphic recorder. Dirancang berdasarkan standar IEC 651 Type 2 dan ANSI S1.4 Type 2, cocok untuk pengukuran kebisingan di industri, lingkungan, pabrik, konstruksi, kantor, dan berbagai kebutuhan inspeksi.
Fitur Sanfix GM 1358
✔ Standar IEC 651 Type 2 & ANSI S1.4 Type 2
✔ Rentang pengukuran 30–130 dBA / 35–130 dBC
✔ Akurasi hingga ±1,5 dB
✔ Frequency weighting A / C
✔ Time weighting FAST / SLOW
✔ Display digital 4 digit
✔ Resolusi 0,1 dB
✔ Bar graph level suara
✔ Indikator OVER / UNDER
✔ AC & DC Output untuk perangkat analisis
✔ Auto power off
✔ Mikrofon electret condenser 1/2 inch
Spesifikasi Sanfix GM 1358
✔ Model: GM 1358
✔ Unit: 1 unit
✔ Measuring Range: 30–130 dBA; 35–130 dBC
✔ Accuracy: ±1,5 dB
✔ Frequency Range: 31,5 Hz–8 kHz
✔ Level Range: 30–80, 50–100, 60–110, 80–130, 30–130 dB
✔ Frequency Weighting: A / C
✔ Digital Display: 4 digit
✔ Resolution: 0,1 dB
✔ Sample Rate: 2 kali/detik
✔ Time Weighting: FAST / SLOW
✔ Microphone: 1/2 inch electret condenser
✔ AC Output: 0,707 Vrms, impedansi ±600 Ω
✔ DC Output: 10 mV/dB, impedansi ±100 Ω
✔ Over Indication: OVER / UNDER
✔ Self Calibration Time: 3 detik
✔ Power: Baterai 9V
✔ Battery Life: ±30 jam
✔ Suhu operasi: 0–40°C
✔ Kelembapan operasi: 10–80% RH
✔ Dimensi: 207 × 70 × 29 mm
✔ Berat: ±0,2 kg
