Deskripsi

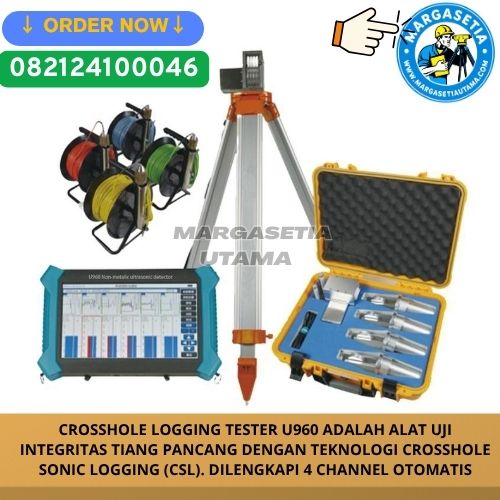

GTJ-U960 dilengkapi motherboard industri A9, layar sentuh kapasitif 10 inci, akuisisi data otomatis 4 channel, serta fitur wireless cloud transmission (opsional) untuk memudahkan penyimpanan dan pengelolaan data hasil pengujian.
Keunggulan Crosshole Logging Tester U960
✔ Pengujian Crosshole Sonic Logging (CSL) untuk pile integrity
✔ Mengintegrasikan 5 fungsi pengujian dalam satu alat
✔ Layar sentuh kapasitif warna 10 inci dengan kecerahan tinggi
✔ Motherboard industri A9 berperforma tinggi
✔ Akuisisi data otomatis 4 channel berkecepatan tinggi
✔ Mendukung USB dan Wireless Cloud Transmission (opsional)
✔ Perekaman gelombang otomatis dengan akurasi tinggi
✔ Desain roda kedalaman tahan debu dan tahan air
✔ Baterai lithium internal dengan waktu kerja ≥8 jam
✔ Cocok untuk laboratorium, konsultan geoteknik, dan proyek konstruksi
Spesifikasi Teknis
✔ Model : GTJ-U960
✔ Fungsi : Crosshole Sonic Logging (CSL), Pile Integrity Test, Concrete Strength Test, Crack Measurement, Defect Detection
✔ Main Controller : Embedded Industrial A9 Motherboard
✔ Display : LCD Color Capacitive Touchscreen 10 Inch High Brightness
✔ Operation : Full Touch Screen
✔ Storage : Built-in Electronic Hard Disk + High Capacity Storage
✔ Data Transfer : USB & Wireless Cloud Transmission (Optional)
✔ Acquisition Mode : Synchronous Continuous High-Speed Acquisition
✔ Channels : 4 Automatic Acquisition Channels
✔ Sections per Measurement : 6
✔ Trigger Mode : Signal Trigger
✔ Test Modes : Flat Test, Retest, Encryption, Oblique Test
✔ Sampling Period : 0.05–409.6 μs (Multi-Gear)
✔ Acoustic Time Accuracy : 0.05 μs
✔ Acoustic Time Range : 1–677,700 μs
✔ Crack Width Measurement : 0–10 mm
✔ Measurement Accuracy : 0.01 mm
✔ Dynamic Range : 146 dB
✔ Bandwidth : 1–500 kHz
✔ Receiving Sensitivity : ≤10 μV
✔ Capture Accuracy : 0.5 dB
✔ Transmission Voltage : 125 / 250 / 500 / 1000 V (Adjustable)
✔ Communication Interface : USB
✔ Operating Time : ≥8 Hours
✔ Power Supply : Internal Lithium Battery / External 220V AC–16V DC
✔ Operating Temperature : -10°C hingga +40°C
✔ Main Unit Dimensions : 335 × 195 × 58 mm
✔ Gross Weight : 51.5 kg
Aplikasi
Crosshole Sonic Logging (CSL)
Pile Integrity Test (PIT)
Pengujian Integritas Tiang Pancang
Deteksi Cacat Beton
Pengukuran Kekuatan Beton
Pengukuran Lebar Retak Beton
Evaluasi Dinding Diafragma
Investigasi Geoteknik
Evaluasi Integritas Batuan
Laboratorium Teknik Sipil dan Konstruksi
